Shelly Wave Pro Dimmer 1PM

About Z-Wave:

Z-Wave is a smart home protocol specifically designed for communication between smart devices. The sub-gigahertz frequency ensures reliable signal transmission, while the MESH network topology allows devices remote from the central unit to communicate efficiently (devices with a permanent power connection act as repeaters). Z-Wave devices need a Z-Wave hub or USB coordinator (e.g. connected to a mini PC) to operate. The protocol uses standardised communication Command Classes (CCCs), ensuring compatibility between hundreds of brands and thousands of devices. Devices within a Z-Wave network can operate as a single system. A network can contain up to 232 devices. The Z-Wave protocol also has the advantage of supporting association groups, which allow direct connections between devices within the network. In addition, Z-Wave devices offer extensive parameter settings at protocol level, allowing customisation for even the most demanding needs.

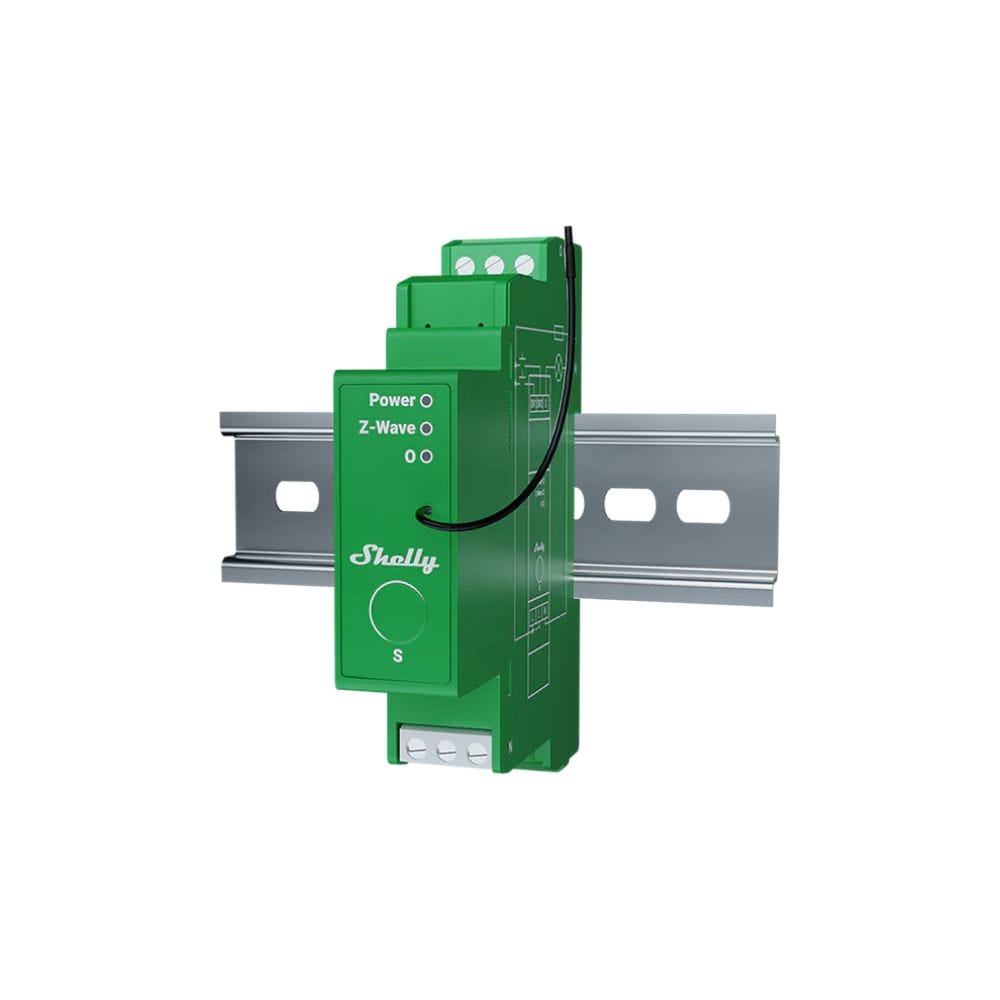

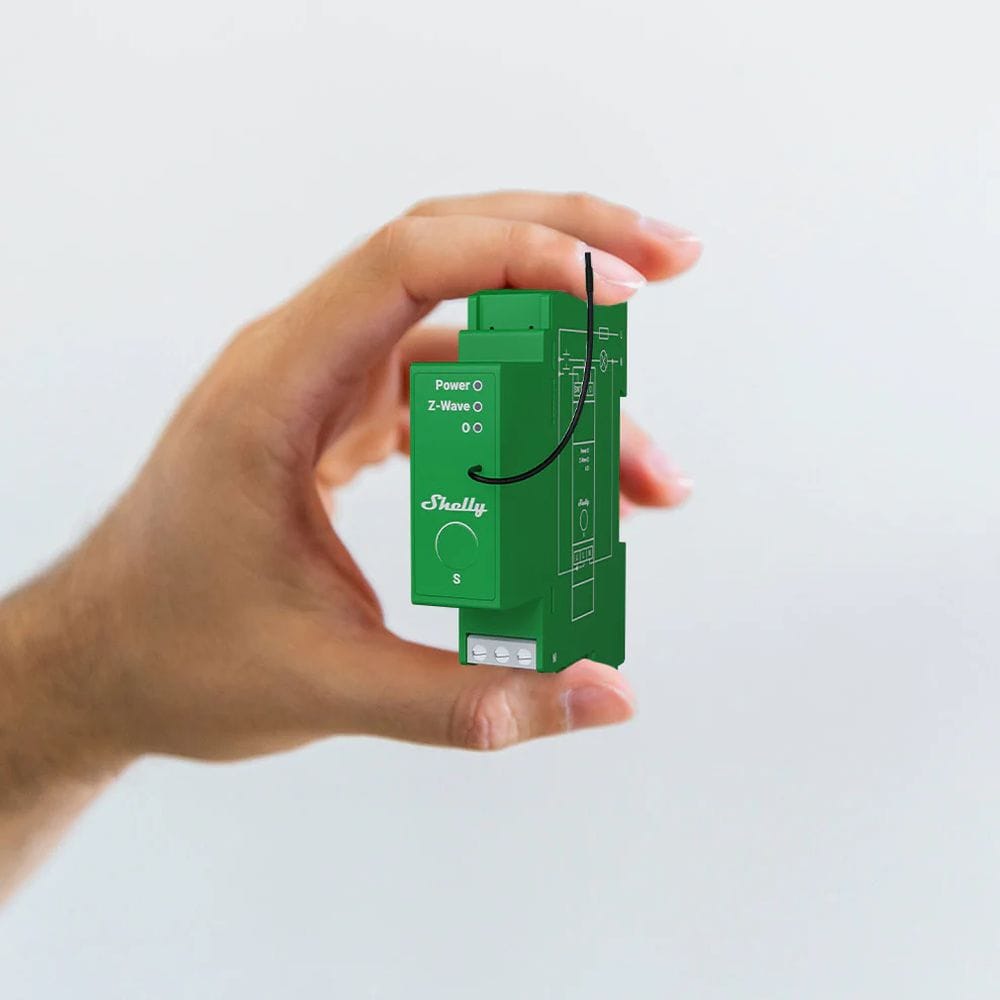

Shelly Wave Pro Dimmer 1PM is a DIN rail-mounted single-channel smart dimmer designed for precise control of the luminance of the lighting. As it is designed to be DIN rail mounted, it requires continuous wiring (star wiring). It can operate stand-alone with a switch or pushbutton, or be integrated into Z-Wave smart home systems, allowing remote access and control via a smart home controller and internet connection.

Key features

• Single-channel dimming: It allows the luminance of one light circle to be adjusted with one device.
• Compatibility with switches and buttons: It can be used with conventional wall switches or pushbuttons.
• Remote access and management: The connection to a Z-Wave hub allows monitoring and control from anywhere via an internet connection.
• Safety features: Built-in protection against overheating, overload and overvoltage ensures safe operation.

Inputs

• 2 switch/button inputs via terminal blocks
• Power terminal blocks: N, L

Exits

• 1 output channel

Connectivity

• Z-Wave (unsecured, S0 Security, S2 Unauthenticated Security, S2 Authenticated Security)

Technical specifications

• Supported light sources:
  LED luminaires: up to 200 W
  Filament lamps: up to 200 W
  Halogen bulbs: up to 200 W
  Iron core transformers for low voltage lamps: up to 200 VA
  Dimmable electronic transformers: up to 200 W
• Power supply: 110 - 240 V AC, 50/60 Hz
• Energy consumption: less than 0,3 W
• Type of dimming: trailing edge
• Power measurement [W]: Yes
• Maximum power output: 200 W
• Overheating protection: Yes
• Overload protection: Yes
• Overvoltage protection: Yes
• Domet: up to 40 m indoors (depending on conditions)
• Z-Wave repeater: Yes
• Processor: Z-Wave S800
• Dimensions (H x W x D): 94 x 19 x 69 mm
• Installation: DIN rail
• Housing material: plastics
• Colour: lime green
• Operating temperature: -20°C to 40°C
• Humidity: 30% - 70% RH

Integration and compatibility

Shelly Wave devices are based on Z-Wave communication technology, one of the leading protocols for smart homes. This ensures compatibility with any controller that supports the Z-Wave protocol. Shelly regularly performs compatibility tests with different Z-Wave controllers to ensure trouble-free operation. The Shelly Wave Pro Dimmer 1PM is the ideal choice for smart control and automation of lighting systems in homes, offices or industrial environments.
