Shelly Wave Pro Dimmer 2PM

About Z-Wave:

Z-Wave is a smart home protocol specifically designed for communication between smart devices. The sub-gigahertz frequency ensures reliable signal transmission and the MESH network topology allows devices that are remote from the central unit (hub) to communicate stably (devices with a permanent power connection act as repeaters). Z-Wave devices need a Z-Wave hub or USB coordinator (e.g. connected to a mini PC) to operate. The protocol uses standardised communication Command Classes to ensure compatibility between hundreds of brands and thousands of devices within a Z-Wave system. A Z-Wave network can contain up to 232 devices. An additional benefit of the Z-Wave protocol is the support for association groups, which allow direct connections between specific devices within the network. In addition, Z-Wave devices allow extensive parameter settings at protocol level, allowing highly customised configurations for even the most demanding needs.

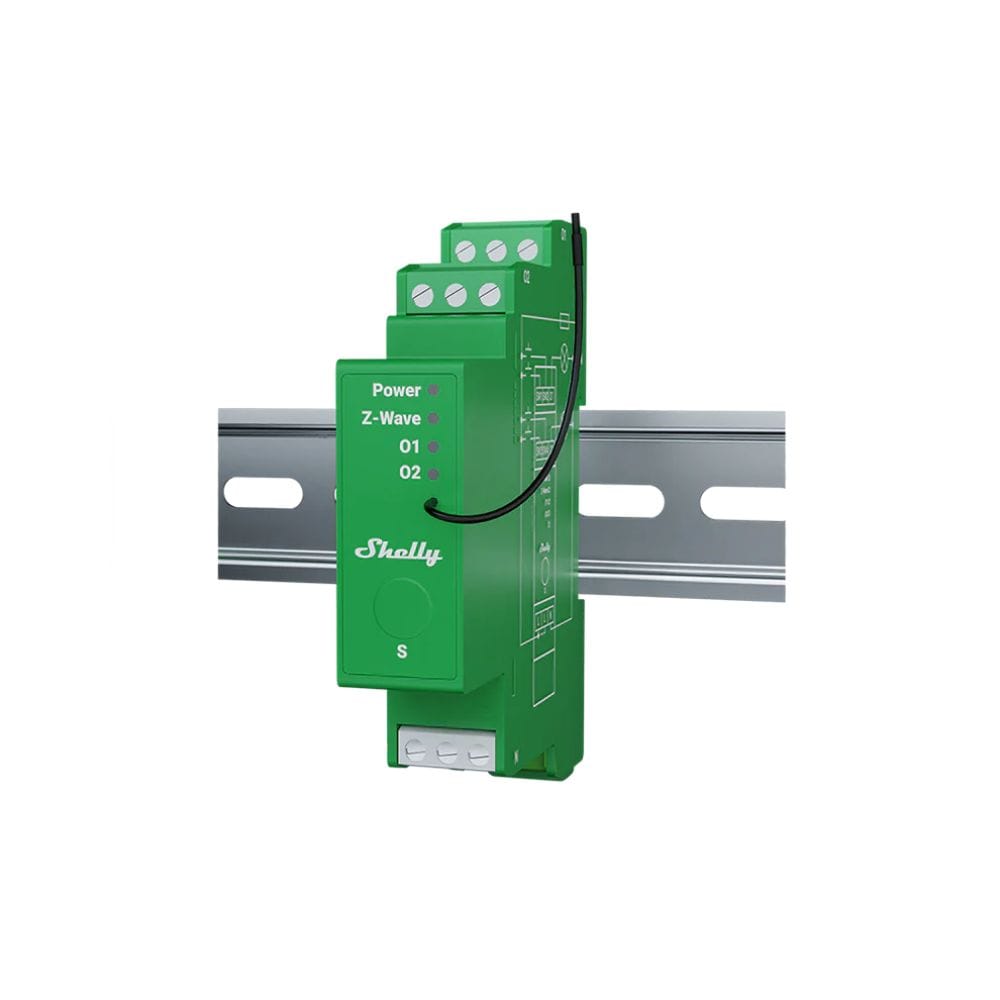

Shelly Wave Pro Dimmer 2PM is a DIN rail-mounted dual-channel smart dimmer designed for precise luminance control. It can operate stand-alone with a switch or pushbutton, or integrated into Z-Wave smart home systems, allowing remote access and control via a smart home hub and internet connection.

Key features

• Bi-channel dimming: It allows the luminous intensity of two separate light circuits to be adjusted with one device.
• Compatibility with switches and buttons: It can be used with conventional wall switches or pushbuttons.
• Remote access and management: The connection to a Z-Wave hub allows monitoring and control from anywhere via an internet connection.
• Safety features: Built-in protection against overheating, overload and overvoltage ensures safe operation.

Inputs

• 4 switch/button inputs via terminal blocks
• Power terminal blocks: N, L

Exits

• 2 output channels

Connectivity

• Z-Wave (unsecured, S0 Security, S2 Unauthenticated Security, S2 Authenticated Security)

Technical specifications

• Supported light sources:
  LED luminaires: up to 200 W per channel
  Filament lamps: up to 200 W per channel
  Halogen bulbs: up to 200 W per channel
  Iron core transformers for low voltage lamps: up to 200 VA per channel
  Dimmable electronic transformers: up to 200 W per channel
• Power supply: 110 - 240 V AC, 50/60 Hz
• Energy consumption: less than 0,3 W
• Type of dimming: trailing edge
• Power measurement [W]: Yes
• Maximum power output: 200 W per channel
• Overheating protection: Yes
• Overload protection: Yes
• Overvoltage protection: Yes
• Domet: up to 40 m indoors (depending on conditions)
• Z-Wave repeater: Yes
• Processor: Z-Wave S800

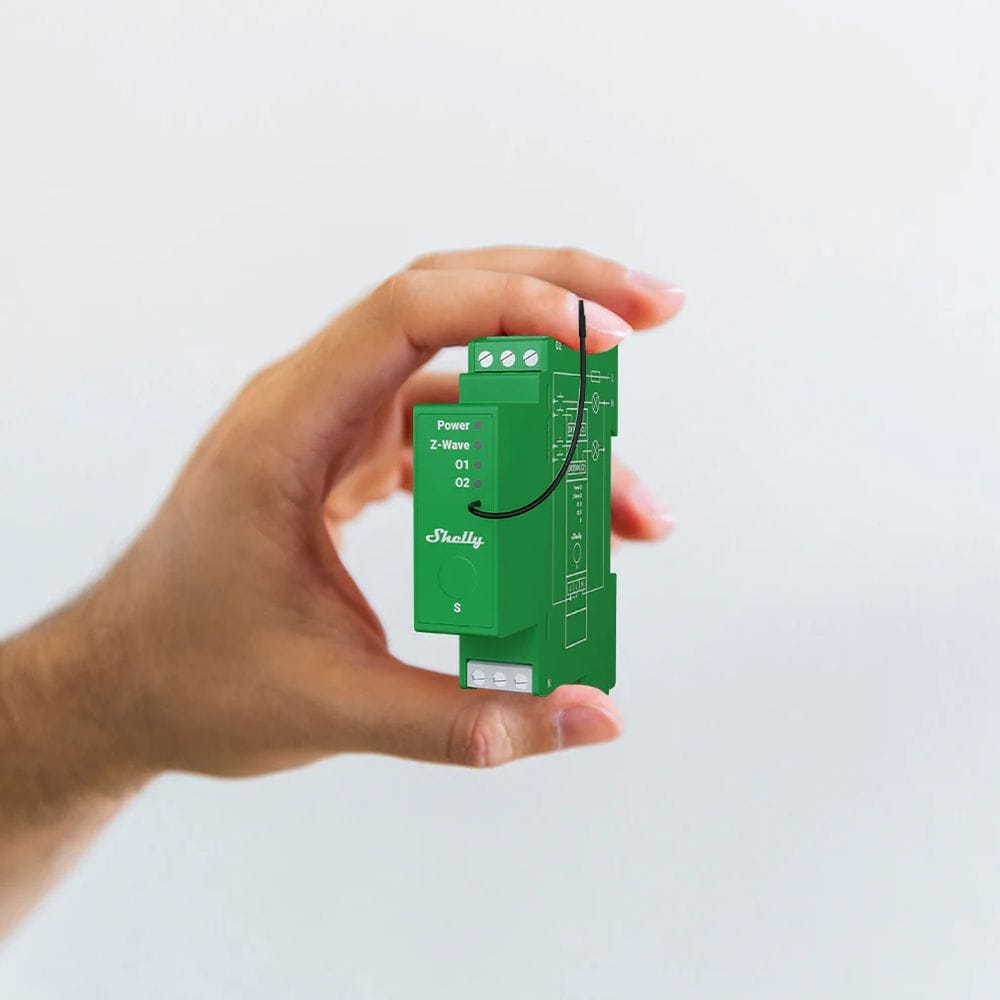

• Dimensions (H x W x D): 94 x 19 x 69 ± 0,5 mm
• Installation: DIN rail
• Housing material: plastics
• Colour: lime green
• Operating temperature: -20°C to 40°C
• Humidity: 30% - 70% RH
• Maximum altitude: 2000 m

Integration and compatibility

Shelly Wave devices are based on Z-Wave communication technology, one of the leading protocols for smart homes. This ensures compatibility with any controller that supports the Z-Wave protocol. Shelly regularly performs compatibility tests with different Z-Wave controllers to ensure trouble-free operation. The Shelly Wave Pro Dimmer 2PM is the ideal choice for smart control and automation of lighting systems in homes, offices or industrial environments.
