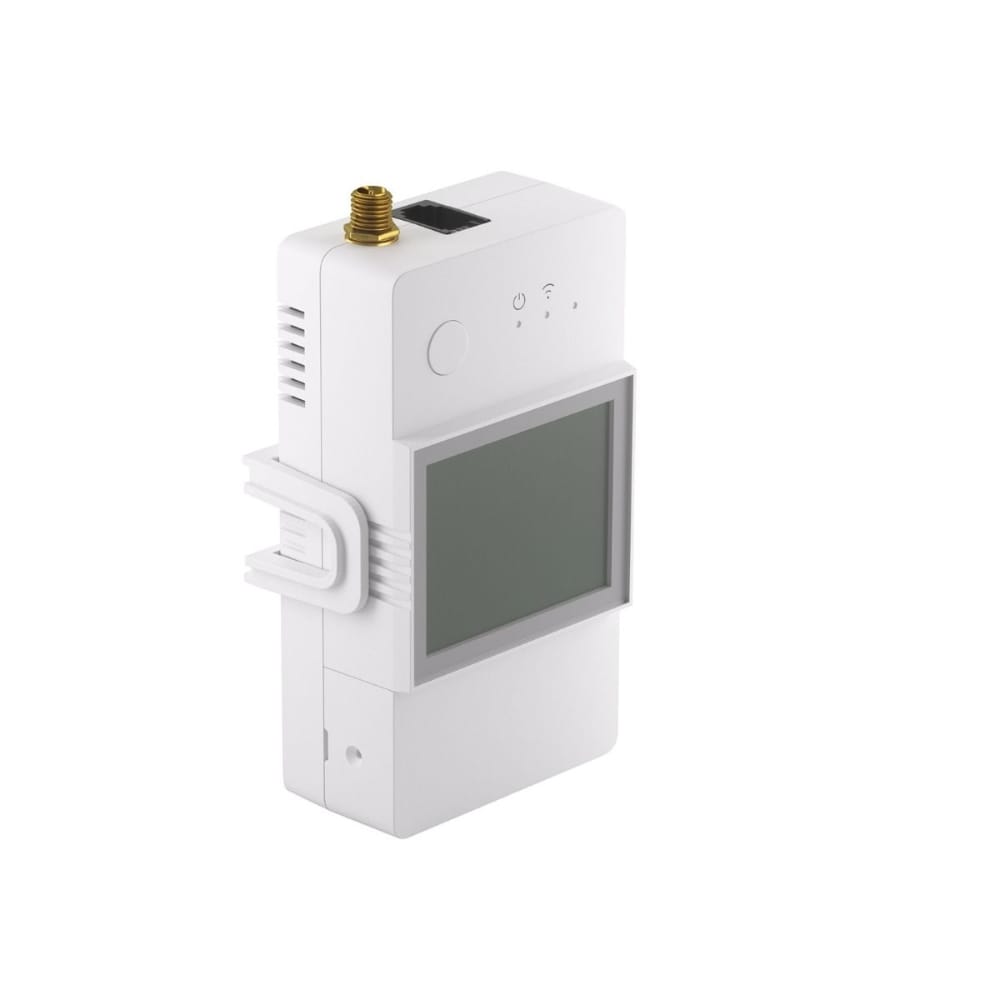

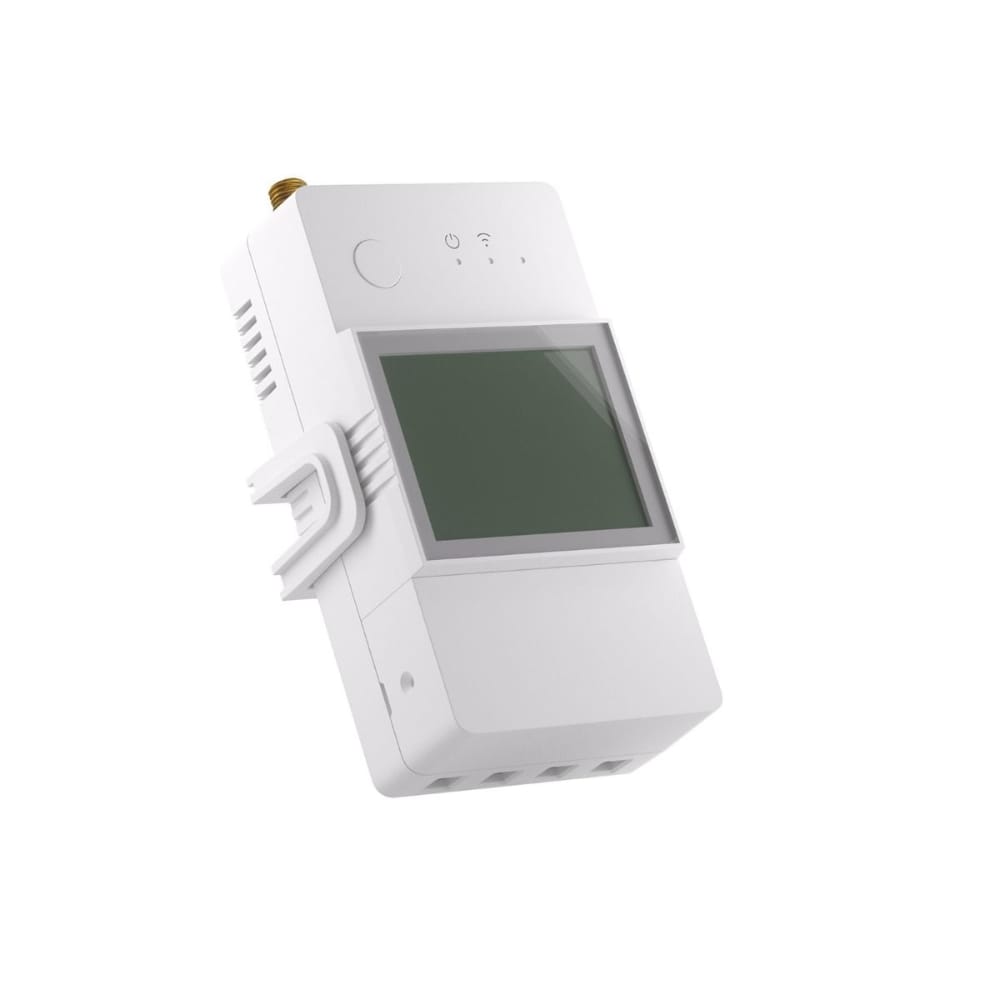

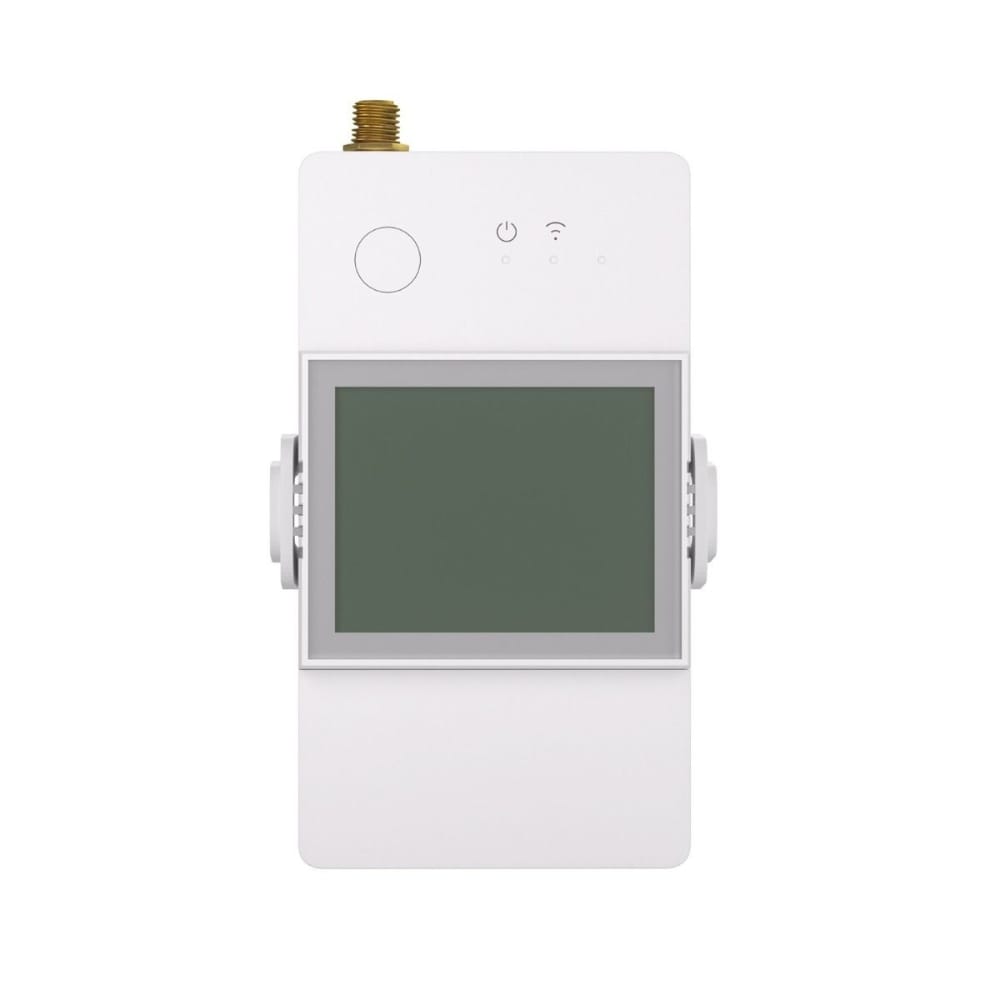

Sonoff POWCT Power Ring WiFi Relay Module with Power Meter (100A current clamp)

Sonoff POW Ring smart power meter, also known as Sonoff POW CT, is a smart electricity meter equipped with a current transformer and a built-in relay for switching small currents (up to a maximum of 2A).

This function makes the device suitable for controlling the switching coil of a high-current contactor installed in a junction box. The measuring range of the POW CT is between 0-100A, making it ideal for measuring the main connection in apartments or houses.

As is typical of the Sonoff POW series, the device can be mounted on a DIN rail. It is equipped with a display and a micro switch for connecting to the application and switching the relay. Thanks to the external WiFi antenna, it can also be installed in a metal cabinet - the antenna simply slides out, allowing a stable connection to the WiFi router. A micro switch allows quick connection to the eWeLink app and at the same time manual control of the relay output.

Main features:

• Chip: ESP32
• Power supply: 100-240V AC
• Communication protocol: WiFi 2.4GHz (IEEE 802.11 b/g/n)
• External WiFi antenna (SMA connector) Included
• Current transformer with RJ9 connector, measuring range 0-100A
• Dimensions of the device: 98 × 54 × 31 mm
• Operating temperature: -40℃ to 50℃
• Working humidity: 5 % - 95 % (non-condensing)
• Package contents: device with description, current transformer, external antenna, DIN adapter
• Model: POWCT
