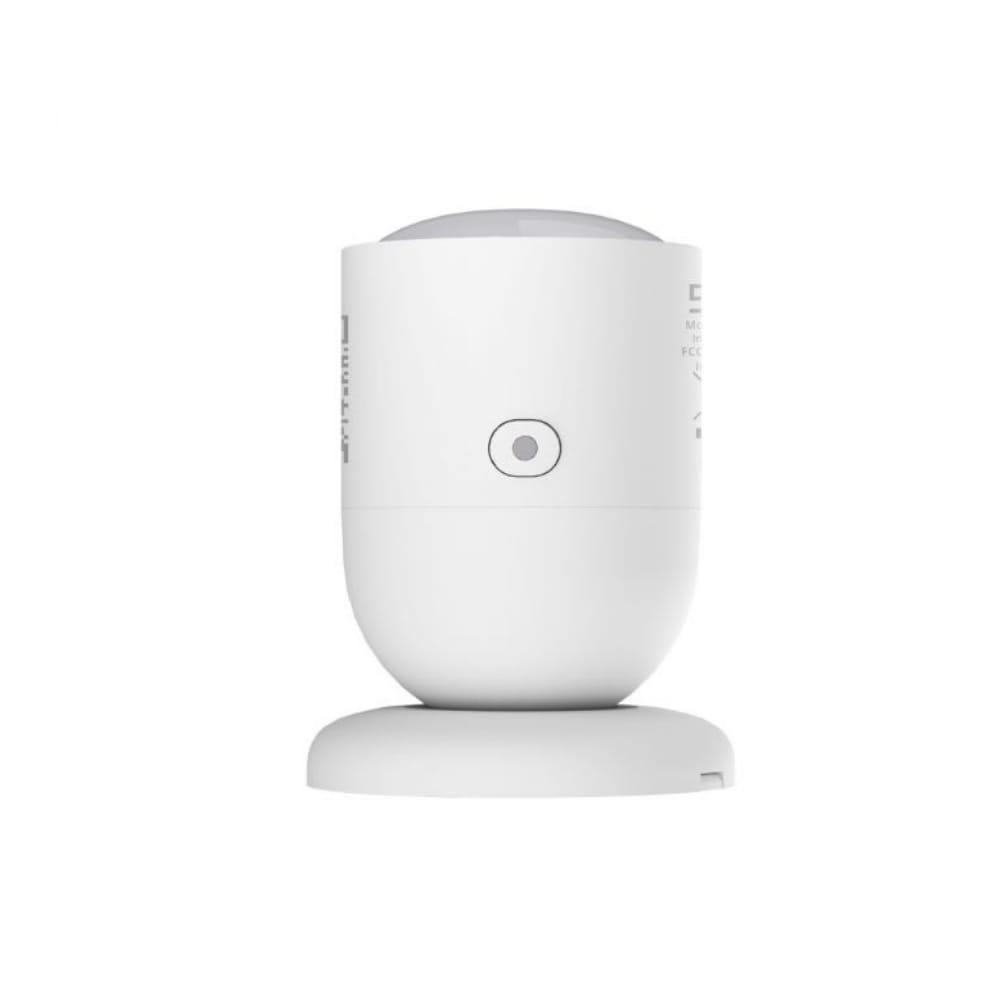

Sonoff SNZB-06P smart ZigBee microwave occupancy sensor

The SNZB-06P is an occupancy sensor based on 5.8 GHz microwave technology. Unlike conventional motion sensors, it not only detects movement, but also if you are standing or sitting still. For example, it helps to prevent lights from switching off prematurely even if someone is still in the detection range.

It is compatible with all eWeLink Zigbee gateways and hubs, as well as several external Zigbee 3.0 gateways. Please note: the functions offered by the sensor may vary depending on the gateway. It is powered via a USB Type-C connector with an adapter (5V DC), which is not included in the package.

Installation:
For proper operation, installation at a height of at least 2 metres is required.
The radar has a radial detection range of approximately 4 metres.

Overview of components:
1. Presence sensor
2. Magnetic base for wall mounting
3. Function button (for connection and reset)
4. LED indicator (operational feedback)
5. USB Type-C connector

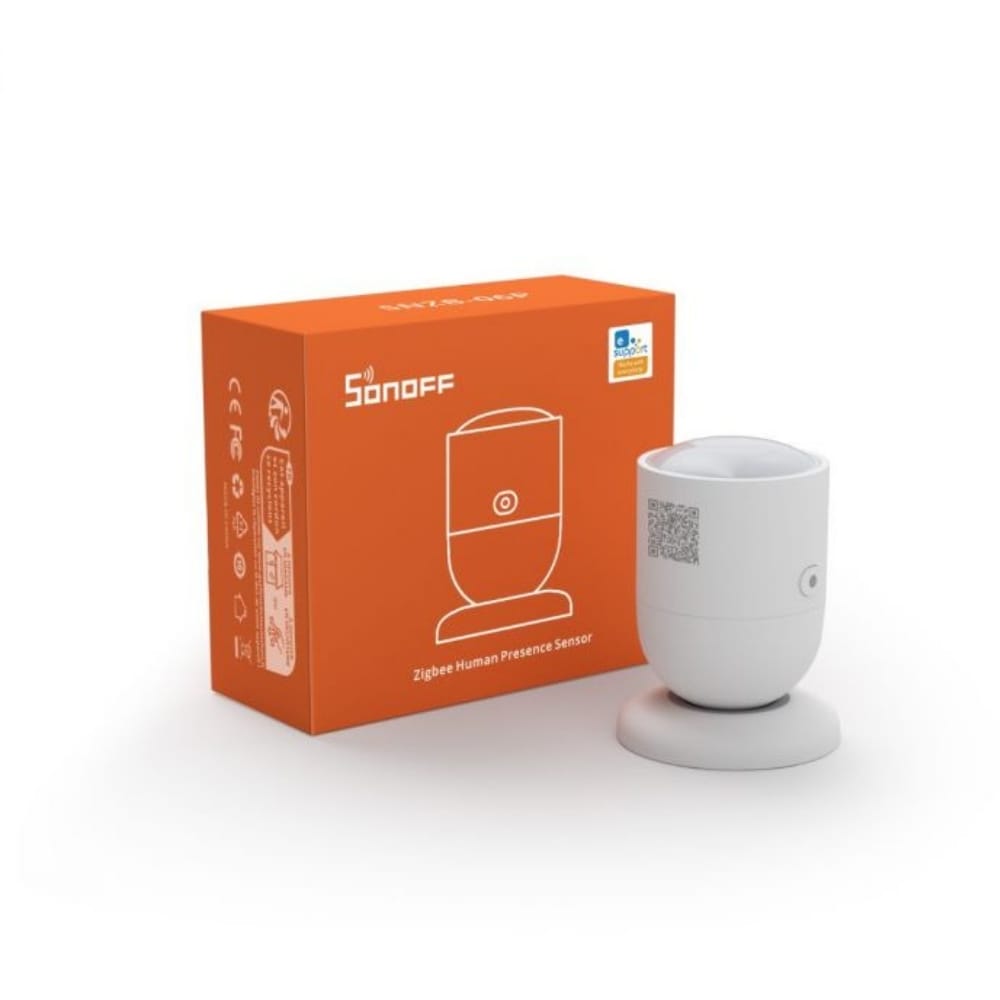

Package contents:
- Occupancy sensor
- Magnetic substrate
- Charging cable (USB Type-C)

Compatible with the following gateways:
SONOFF ZBBridge, Sonoff ZBBridge-P (Zigbee Bridge Pro), SmartWise Zigbee Bridge Pro, Sonoff NSPanel PRO, Sonoff iHost, Sonoff ZBDongle-P, Sonoff ZBDongle-E.

Some third-party gateway models are also supported.

Specifications:
Type: SNZB-06P
MCU: EFR32MG22
Power: USB Type-C 5V (1A)
Communication range: indoor environment 30 m
Protocol: Zigbee 3.0 (IEEE802.15.4)
Physical dimensions: 22 mm × 44.2 mm × 59 mm
Colour: White
Housing material: ABS+PC
Protection class: IP20 (for indoor use)
Operating temperature: -10 °C to 60 °C
Operating humidity: 0-90 % RH (non-condensing)
Certifications:CE / FCC / ISED / RoHS
Performance standard: EN IEC 62368-1
